16" x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment

Dettagli:

Luogo di origine:	Guangdong, Cina
Marca:	GUOMAT
Certificazione:	ISO/TS16949:2009
Numero di modello:	2B16X2T

Termini di pagamento e spedizione:

Quantità di ordine minimo:	6 pezzi
Prezzo:	negoziabile
Imballaggi particolari:	Robusta scatola di cartone o come richiesto dai clienti
Tempi di consegna:	2-8 giorni lavorativi
Termini di pagamento:	L/C,D/A,D/P,T/T,Western Union
Capacità di alimentazione:	1000 pezzi/settimana

Contatto

Descrizione di prodotto dettagliata

Temperatura di lavoro:	-40℃+70℃	Modello:	Airbag avvolti
Riferimento incrociato:	Contitech FD 816-30	Garanzia Speciale:	1 anno
Utilizzo:	Industriale	Numero degli avvolgimenti:	Raddoppiare
Numero di muggito:	16x2	Pietra focaia:	W01R584067
Evidenziare:	Firestone air spring double convoluted , 16 inch rubber air spring , air bellow for tooling equipment

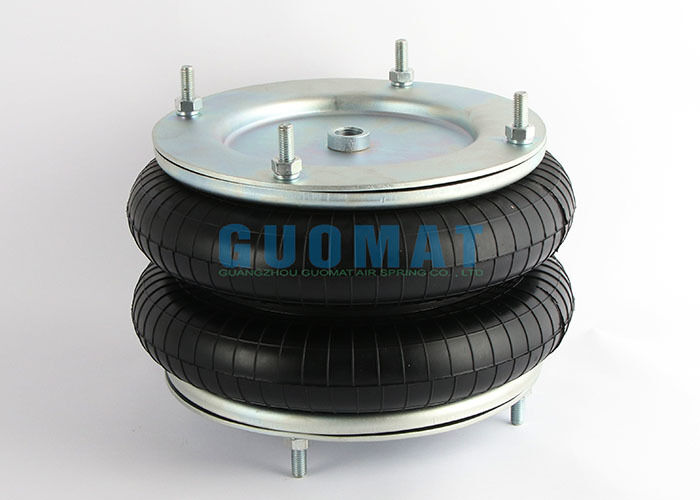

16" x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring

Designed for tooling equipment, this double convoluted rubber air spring provides reliable performance and durability.

Product Overview

The GUOMAT 2B16X2T air spring is manufactured with high-quality materials and superior craftsmanship, serving as a complete replacement for the Firestone W01R584067.

This product uses high-toughness natural/synthetic composite rubber and imported cord reinforcement materials, adhering to ISO international quality standards. Fully compatible with the original Firestone W01R584067 in interface dimensions, working stroke, and rated load capacity, making it ideal for bus suspensions, commercial vehicle cab vibration damping, and industrial equipment vibration isolation.

Product Specifications

Product Name	Flange Air Spring
Brand	GUOMAT
Model No.	2B16x2T
Convolutions	2
Warranty	1 Year
Material	Rubber and Steel

Compatible OEM Numbers

Firestone Style: 16''X2, 16X2
Firestone Number: W01R584067, W01 R58 4067, W01-R58-4067
Dunlop Number: SP1557
Contitech Number: FD816-30DS, FD 816-30DS, FD 816-30 DS
Norgrem Number: M/31162, M 31162, M31162
Parker Number: 9109171

Technical Specifications

Air port inlet	G1/2
Rec/Max pressure	5,5/8 bar
Force(N)@0 bar to H(mm)	120(80)
Weight	9.70KG
Max. outer diameter	440mm
Min. height	75mm
Max. height	325mm
Recommended height	300mm
