W01-358-7244 Double Convoluted Air Spring 201 Style Air Bellows Suspension

Dettagli:

Luogo di origine:	Guangdong, Cina
Marca:	GUOMAT
Certificazione:	ISO/TS16949:2009
Numero di modello:	2H7244

Termini di pagamento e spedizione:

Quantità di ordine minimo:	6 pezzi
Prezzo:	negoziabile
Imballaggi particolari:	Robusta scatola di cartone o come richiesto dai clienti
Tempi di consegna:	2-8 giorni lavorativi
Termini di pagamento:	L/C,D/A,D/P,T/T,Western Union
Capacità di alimentazione:	1000 pezzi/settimana

Contatto

Descrizione di prodotto dettagliata

Materiale:	Gomma	Tipo di carico:	Compressione
Blocco paraurti:	senza	Porta:	Huangpu, Cina
Imballaggio:	Scatola neutrale o su richiesta del cliente	Garanzia:	Un anno
Pressione di esercizio:	2-8Mpa	Pietra focaia:	W01-358-7244
Evidenziare:	Double Convoluted Air Spring , 201 Style Air Bellows , Rubber Air Spring Suspension

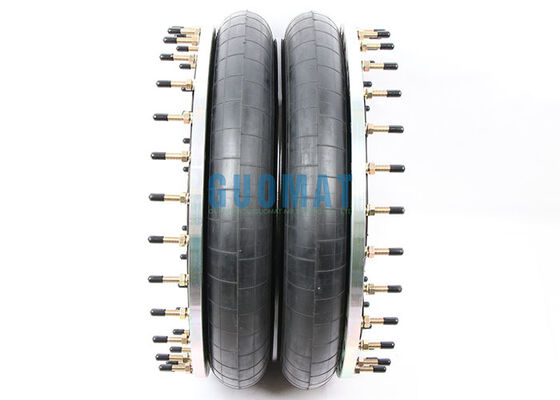

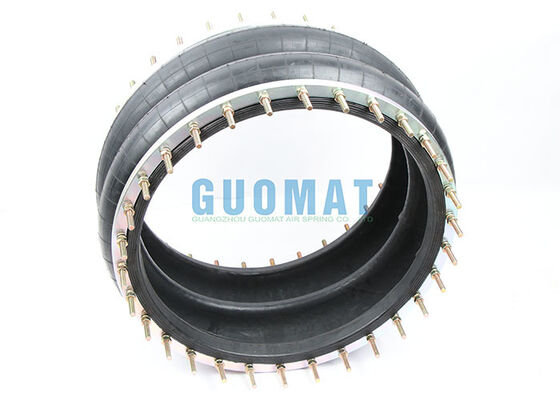

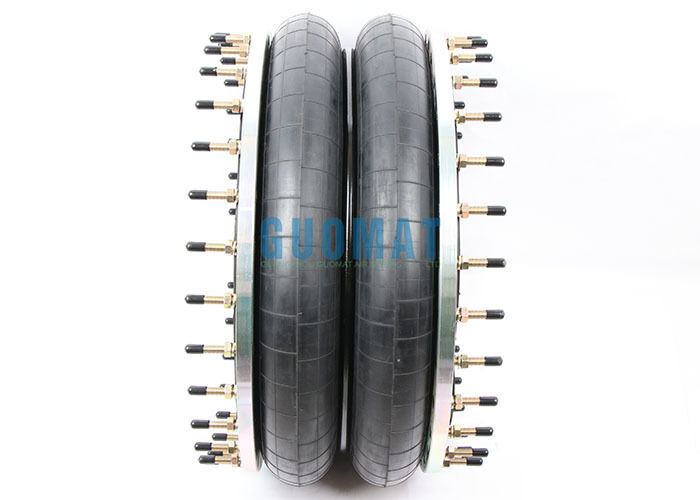

W01-358-7244 Double Convoluted Air Spring 201 Style Air Bellows Suspension

The GUOMAT 2H7244 Rubber Air Spring is a premium-quality double convoluted air bellows designed for industrial vibration isolation, shock absorption, and pneumatic actuation applications. Engineered to replace Firestone W01-358-7244 (Style 28), this air spring delivers reliable load support and excellent dynamic performance in a wide variety of industrial equipment.

Featuring a double convoluted rubber bellows construction, the GUOMAT 2H7244 provides a larger effective area and improved flexibility compared to conventional mechanical springs. The air-filled design allows the spring rate to adjust automatically according to load changes, helping maintain stable operation while reducing transmitted vibration and noise.

Manufactured using high-grade natural rubber reinforced with durable cord fabric, the air spring offers excellent fatigue resistance and long service life. Heavy-duty steel mounting plates provide secure installation and dependable performance even under continuous industrial use.

Product Specifications

Type: Rubber Air Spring

Model: 2H7244

Brand: GUOMAT

Warranty: 1 Year

Material: Rubber + Steel

Style: 28 Style Double Convoluted Air Spring

Alternative Part Numbers

Firestone Style 201

FIRESTONE STYLE: 201
FIRESTONE STYLE: W013587244
FIRESTONE STYLE: W01 358 7244
FIRESTONE STYLE: W01-358-7244

High Strength Bellows with Ribbed Neck Aluminum Bead Rings

W013587244 / W01 358 7244 / W01-358-7244
WO13587244 / WO1 358 7244 / WO1-358-7244

High Strength Bellows - Rubber Bellows Only

W011390201 / W01 139 0201 / W01-139-0201
WO11390201 / WO1 139 0201 / WO1-139-0201

Firestone 28 Style Rubber Air Spring Variants

Part Number	Description
W01-358-7191	Ribbed neck aluminum bead rings (equal spacing)
W01-358-7194	Ribbed neck aluminum bead rings (equal spacing) 1 7/8 b,n,w
W01-358-7192	Ribbed neck aluminum bead rings (equal spacing) 1 1/4 b,n,w
W01-358-7271	Rolled plate assembly, 1/2 blind nut 3/4NPT
W01-358-7925	Rubber bellows only
