Casa ProdottiMolla pneumatica della sospensione

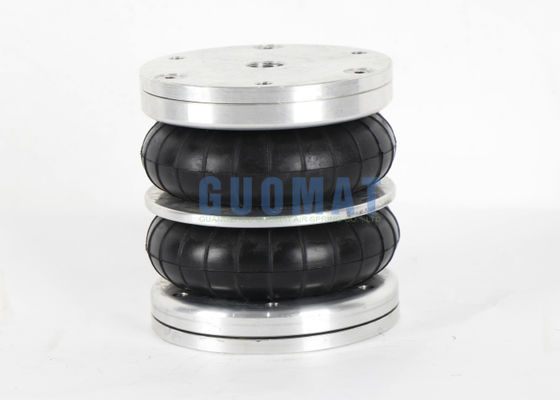

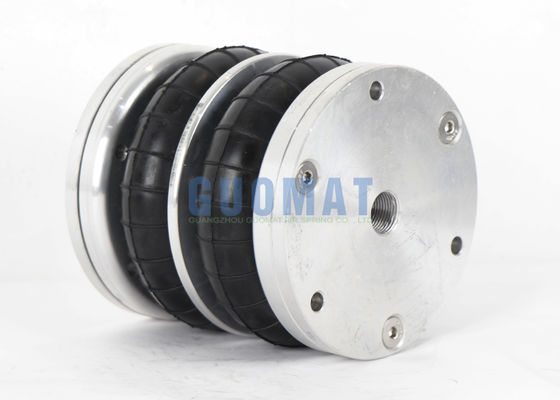

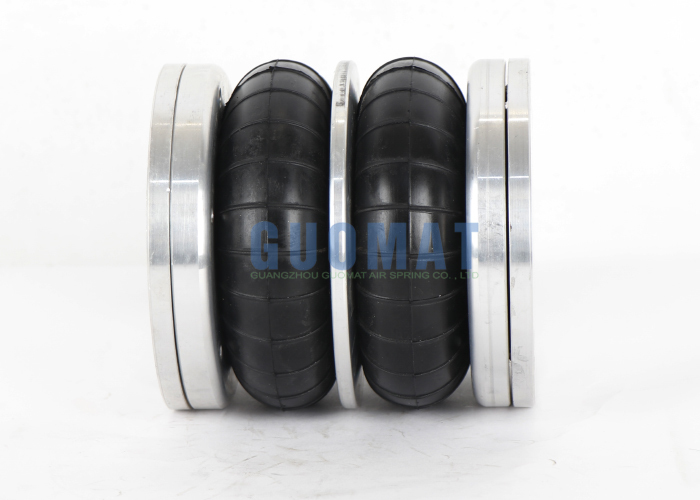

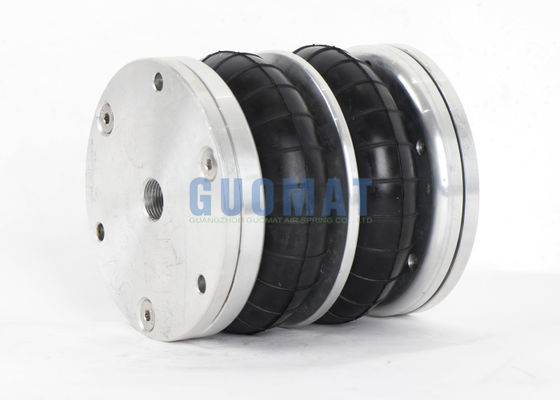

4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring

4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring

  • 4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring
  • 4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring
  • 4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring
  • 4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring
4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring
Dettagli:
Luogo di origine: Guangzhou, Cina
Marca: GUOMAT
Certificazione: ISO/Ts16949:2009
Numero di modello: 2B4.5X2P
Termini di pagamento e spedizione:
Quantità di ordine minimo: 6pcs
Prezzo: $89.9-99.9/pc
Imballaggi particolari: Imballaggio in cartone o secondo le esigenze del cliente
Tempi di consegna: 5-8 giorni lavorativi
Termini di pagamento: L/C, T/T, Western Union
Capacità di alimentazione: 10.000 alla settimana
Contatto
Descrizione di prodotto dettagliata
Nome prodotto: Molla d'aria a sospensione Materiale primaverile: Copertura in alluminio in gomma naturale+
Qualità: Testato al 100 % Garanzia: 12 mesi
Colore: Nero Contitech: FD 44-10 DI
Convoluzioni: 2 Firestone: W01R584051
Evidenziare:

Firestone suspension air spring

,

double convoluted rubber bellows

,

4 1/2 inch balloon spring

4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring
High-quality air spring designed for heavy duty truck suspension systems, manufactured with rubber and steel components.
Product Specifications
Item Value
Part Number 2B4.5x2P
Type Air Spring
Warranty 12 Months
Truck Model Heavy Duty Truck
Color Black
Place of Origin Guangzhou, China
Certification ISO/TS16949:2009
Material Rubber + Steel
Packing Neutral Packing
MOQ 1 Pcs
Quality High-Quality
Position Auto/Truck parts
Application Auto Suspension Systems
FD 44-10 DI Contitech Air Spring Technical Data
Maximum Height 150mm
Minimum Height 65mm
Cover Diameter 110mm
Number of Threaded Holes (Top Cover) 3
Threaded Hole Size (Top Cover) M6
Number of Threaded Holes (Bottom Cover) 3
Threaded Hole Size (Bottom Cover) M6
Distance Between Threaded Holes 93mm
Maximum Outside Diameter 125mm
Vibration Isolation - Dynamic Characteristic Values
Pressure P (bar) 3 4 5 6 7 8 Vol V(I)
Force(Load) (KN) 1.1 1.5 2 2.4 2.8 3.2 0.7
Spring Rate (N/mm) 44 56 68 80.5 92.5 104
Natural Frequency f0 (Hz) 3.2 3 3 2.9 2.9 2.8
Pneumatic Application - Static Characteristic Values
Pressure P (bar) 3 4 5 6 7 8 Vol V(I)
Height H (mm) 140 0.8 1.14 1.48 1.82 2.18 2.54 0.74
Height H (mm) 120 1.36 1.86 2.37 2.89 3.4 3.93 0.66
Height H (mm) 100 1.82 2.45 3.09 3.73 4.38 5.03 0.54
Height H (mm) 80 2.29 3.06 3.84 4.62 5.41 6.21 0.4
Applications
  • Various applications for the vehicle industry such as steering damping, engine vibration damping, belt tensioning damping for engines and on driver seats in commercial vehicles
  • On household products such as washing machines
  • Special shock absorbers for bicycles
  • On commercial lawn mowers
  • In the medical equipment industry (e.g., on wheelchairs)
4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring 0 4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring 1
