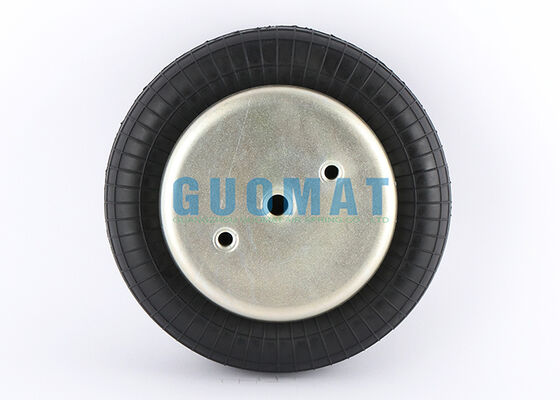

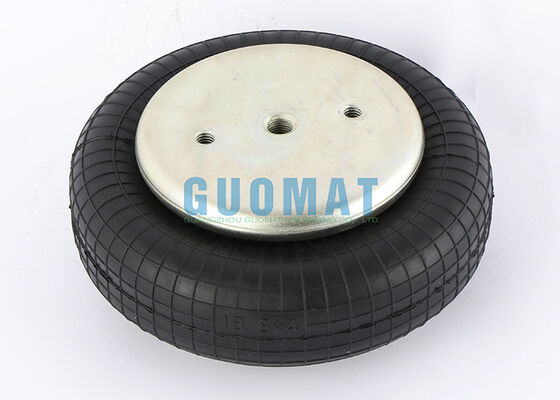

1B8-550 Goodyear Industrial Isolation System W01-358-7564 Firestone Precision Air Spring

Dettagli:

Luogo di origine:	Cina
Marca:	GUOMAT
Certificazione:	ISO/TS16949:2009
Numero di modello:	1B8X4

Termini di pagamento e spedizione:

Quantità di ordine minimo:	6 pezzi
Prezzo:	US$49.9-59.9/PC
Imballaggi particolari:	Robusta scatola di cartone o come richiesto dai clienti
Tempi di consegna:	3-7 giorni lavorativi
Termini di pagamento:	L/C,D/A,D/P,T/T,Western Union
Capacità di alimentazione:	1000 pezzi/settimana

Contatto

Descrizione di prodotto dettagliata

Nome dell'articolo:	Molla pneumatica industriale	Condizione:	Nuovo di zecca
Dimensioni della scatola:	16168 cm	Piastra superiore Dia:	135 mm
Airhole:	1/4 NPTF	Posizione:	Macchina industriale
Peso:	2kg	Goodyear:	1B8-550
Evidenziare:	Goodyear industrial air spring , Firestone precision air spring , industrial isolation system air spring

1B8-550 Goodyear Industrial Isolation System W01-358-7564 Firestone Precision Air Spring

The GUOMAT 1B8X4 industrial vibration-isolating air spring is a single-convoluted industrial air actuator designed for shock absorption, vibration isolation, and precision control applications in industrial equipment. Featuring a composite structure of a high-strength rubber bellows and steel end caps, it utilizes compressed air to provide elastic support, effectively reducing vibration, shock, and noise generated during mechanical operation and enhancing equipment stability.

Product Specifications

Brand: GUOMAT

Model Name: Industrial Air Spring

Model No.: 1B8X4

Material: Rubber and Steel

Warranty: 1 Year

Corresponding OEM Numbers

Firestone Numbers:

W01-358-7600 / WO1-358-7600
W01 358 7600 / WO1 358 7600
W013587600 / WO13587600
W01-358-7564 / WO1-358-7564
W01 358 7564 / WO1 358 7564
W013587564 / WO13587564

Goodyear Numbers:

1B8-550
1B 8-550
1B8 550

Contitech Numbers:

FS120-10
FS 120-10
FS 120-10 CI 1/4 NPT

Technical Data

Dimensions

Cover plate diameter: 135mm

Threaded hole: 3/8-16UNC

Air port: 1/4NPTF

Center-to-center distance: 70mm

Maximum outer diameter: 230mm

Performance Data

Pressure P (bar)	3	4	5	6	7	8	Vol.V(I)
Force(Load) (kN)	4.8	6.6	8.2	9.9	11.6	13.3	2
Spring rate (N/mm)	132	170	209	242	277	316
Natural frequency (Hz)	2.7	2.7	2.6	2.6	2.5	2.5

Height vs Pressure Data

Height H (mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Vol.V(I)
120	4.2	5.6	7.2	8.4	10.2	11.7	2.1
110	4.8	6.6	8.2	9.9	11.6	13.4	2
100	5.6	7.4	9.2	11.2	13.1	15	1.8
90	6	8	10.1	12.2	14.2	16.4	1.6
80	6.5	8.6	10.9	13.2	15.3	17.6	1.4
70	6.8	9.2	11.4	13.8	16.1	18.4	1.3
60	7.1	9.4	12	14.4	16.6	19.2	1.1
