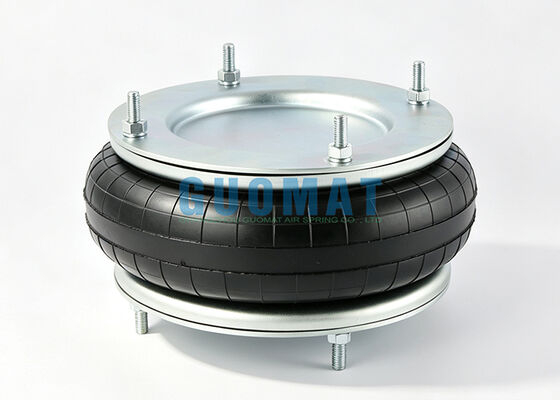

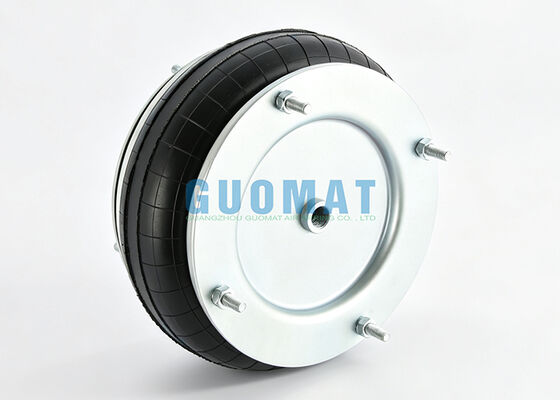

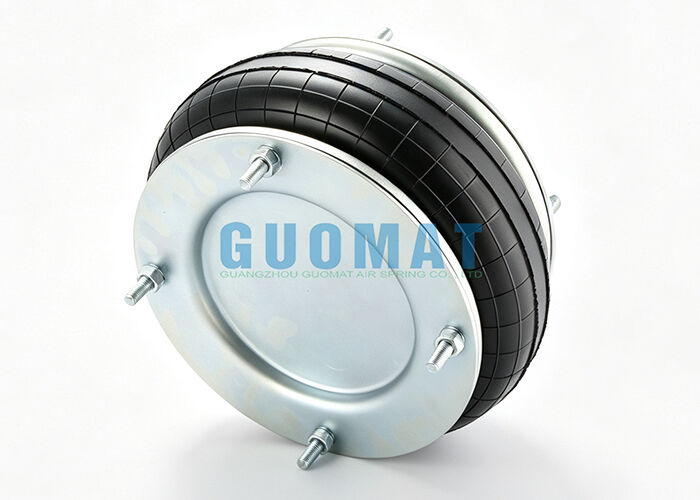

6" x 1 W01R584052 Firestone Air Bellows Replacement FS 76-7 DS Contitech Air Spring Assembly

6" x 1 W01R584052 Firestone Air Bellows Replacement FS 76-7 DS Contitech Air Spring Assembly

  • 6" x 1 W01R584052 Firestone Air Bellows Replacement FS 76-7 DS Contitech Air Spring Assembly
  • 6" x 1 W01R584052 Firestone Air Bellows Replacement FS 76-7 DS Contitech Air Spring Assembly
  • 6" x 1 W01R584052 Firestone Air Bellows Replacement FS 76-7 DS Contitech Air Spring Assembly
6" x 1 W01R584052 Firestone Air Bellows Replacement FS 76-7 DS Contitech Air Spring Assembly
Dettagli:
Luogo di origine: Cina
Marca: GUOMAT
Certificazione: ISO/TS16949:2009
Numero di modello: 1B6X1T
Termini di pagamento e spedizione:
Quantità di ordine minimo: 6 pezzi
Prezzo: US$169.9-199.9/PC
Imballaggi particolari: Robusta scatola di cartone o come richiesto dai clienti
Tempi di consegna: 3-7 giorni lavorativi
Termini di pagamento: L/C,D/A,D/P,T/T,Western Union
Capacità di alimentazione: 1000 pezzi/settimana
Contatto
Descrizione di prodotto dettagliata
Nome: Molla pneumatica in gomma Pietra refrattaria NO.: W01R584052
Resistenza alla corrosione: Eccellente Struttura: Singolo contorto
Parte: Molla pneumatica Navi a: In tutto il mondo
Stato: Nuovo di zecca Garanzia: 1 anno
Evidenziare:

Firestone air spring assembly

,

W01R584052 air bellow replacement

,

Contitech suspension air spring

6" x 1 W01R584052 Firestone Air Bellows Replacement
GUOMAT 1B6X1T is a high-quality single convoluted air spring designed as a direct replacement for Firestone W01R584052 (6" x 1) and Contitech FS 76-7 DS industrial air spring assemblies. Engineered for stable load support, vibration isolation, and long service life in demanding industrial and commercial applications.
Manufacturing & Applications
Manufactured with reinforced natural rubber and high-strength steel end plates, this air bellows ensures reliable performance under continuous dynamic working conditions. Widely used in machinery, automation systems, and industrial vibration control equipment.
OEM Compatibility & Part Numbers
Continental ContiTech: FS 76-7 1/2 M10, FS 76-7 DS CR/FS76-7DSCR, FS 76-07 DS G1/2 CR, FS 76-7/FS76-7/FS767
Firestone: W01-R58-4052/W01 R58 4052/W01R584052
Firestone Style: 6" x1/6"x1/6x1
Dunlop FR: SP153
Dunlop UK (Pneuride): PNP 30551 0113/PNP305510113
Norgren: M/31061/ M 31061/ M31061
Nominal Dimensions: 6" x1/6"x1/6x1
Technical Specifications
Type Single Convoluted Air Spring
Working Pressure 0-8 bar
Air Inlet G 1/2
Cover Plate Diameter 153.5 mm
Bolt Pattern 4 × M10
Screw Center Distance 127 mm
Maximum Diameter 175 mm
Design Height 85 mm
Minimum Height 50 mm
Maximum Height 105 mm
Stroke approx. 55-65 mm
Working Temperature -30°C to +70°C
Quality Assurance
GUOMAT provides reliable aftermarket air spring solutions with OEM-level compatibility. Each unit undergoes rigorous testing for leakage, fatigue resistance, and load performance before shipment, ensuring consistent quality and stable operation in real working environments.
GUOMAT 1B6X1T Firestone Air Bellows Replacement - Single Convoluted Air Spring Assembly
