12''X1 Firestone Air Spring W01R584060 Single Convoluted Air Spring Bags With Flange

Dettagli:

Luogo di origine:	Cina
Marca:	GUOMAT
Certificazione:	ISO/TS16949:2009
Numero di modello:	1B12X1T

Termini di pagamento e spedizione:

Quantità di ordine minimo:	6 pezzi
Prezzo:	US$129.9-159.9/PC
Imballaggi particolari:	Robusta scatola di cartone o come richiesto dai clienti
Tempi di consegna:	3-7 giorni lavorativi
Termini di pagamento:	L/C,D/A,D/P,T/T,Western Union
Capacità di alimentazione:	1000 pezzi/settimana

Contatto

Descrizione di prodotto dettagliata

Nome:	Molla pneumatica in gomma	Unità di vendita:	Articolo singolo
Dimensioni dell'imballaggio:	252525(cm)	Codice SA:	8708809000
Utilizzo:	Macchine industriali ed impianti	Materiale primaverile:	Di gomma di alta qualità
Colore:	Nero	Qualità:	Testato al 100%.
Evidenziare:	Firestone air spring bags , single convoluted air spring , 12x1 flange air spring

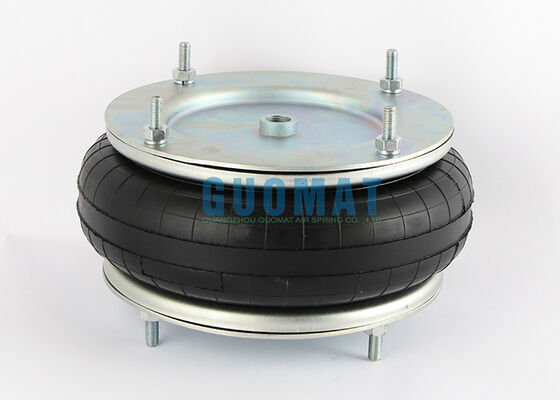

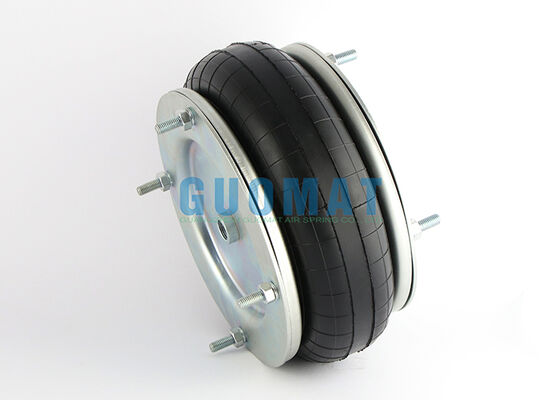

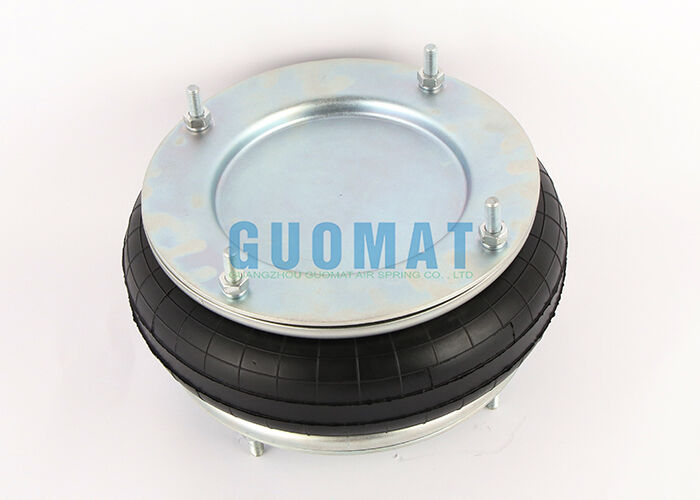

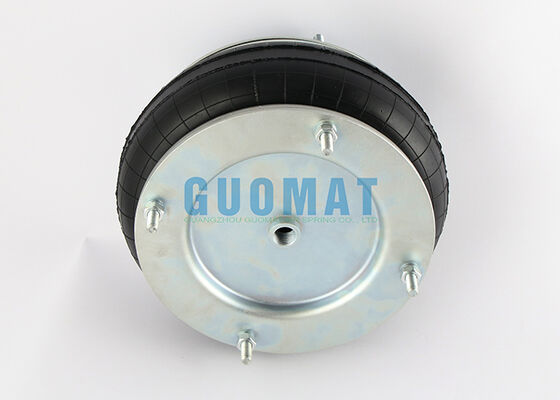

12"×1 Firestone Air Spring W01R584060 Single Convoluted Air Spring Bags With Flange

Product Overview

Type: Rubber Air Spring

GUOMAT Model: 1B12X1T

Convoluted: Single Convoluted

Mounting Type: Flange Type

Material: Natural Rubber + High-Strength Steel Plates

Color: Black

Application: Industrial Machinery, Vibration Isolation Equipment, Press Machines, Conveyors, Automation Systems

Product Description

GUOMAT 1B12X1T is a premium-quality 12"×1 single convoluted air spring designed as a direct replacement for Firestone W01R584060. Manufactured with high-grade natural rubber and precision steel mounting plates, it provides outstanding vibration isolation, shock absorption, and load support for industrial equipment. The flange mounting structure allows quick installation while ensuring stable performance under continuous operation. Designed according to industry standards, it offers excellent compatibility with original equipment and can be installed without complicated modifications. Its durable construction helps reduce maintenance costs and extends machine service life.

OEM Cross-Reference Numbers

Continental ContiTech: FS 330-11 CI 62743

Continental ContiTech: FS 330-11 3/4 M8

Continental ContiTech: FS 330-11 G3/4 M8

Continental ContiTech: FS 330-11 CI G3/4

Continental ContiTech: FS 330-11 CI G3/4 M8

Continental ContiTech: FS 330-11 CI/FS330-11CI/FS33011CI

Continental ContiTech Bellow: FS 330-11/FS330-11/FS33011

Firestone No.: W01-M58-6011/W01 M58 6011/W01M586011

Firestone Style: 19

Goodyear: 1B12-318/1B12 318/1B12318

Goodyear Flex No.: 578-91-3-301/578 913 301/578913301

Dunlop FR: 12"x1 S12100

Enidine: YI-1B12-318/YI1B12 318/YI1B12318

Norgren: PM/31121/PM 31121/PM31121

Nominal 0 (inch) x convolutions: 12" x1/12"x1/12x1

Key Features

Direct Replacement	GUOMAT 1B12X1T is engineered to replace Firestone W01R584060 while maintaining compatible mounting dimensions and reliable operating performance.
Premium Rubber Bellows	Manufactured from high-quality natural rubber with reinforced cord layers, providing excellent fatigue resistance, flexibility, and long service life.
Excellent Vibration Isolation	The air spring effectively absorbs vibration and impact generated by industrial machinery, protecting sensitive equipment and improving production accuracy.
High Load Capacity	Designed to support heavy loads while maintaining stable operation across varying air pressures and working conditions.
Maintenance-Friendly	Compared with conventional metal springs, air springs require less maintenance, generate lower operating noise, and provide smoother machine performance.
