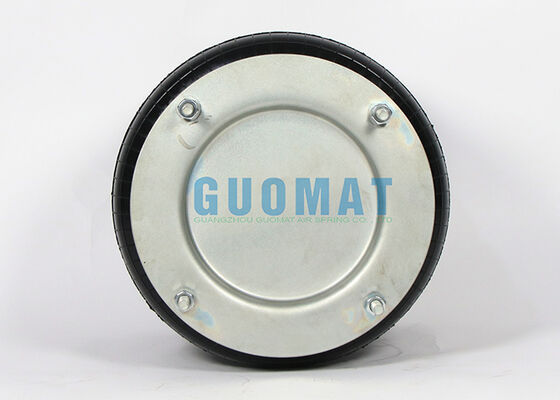

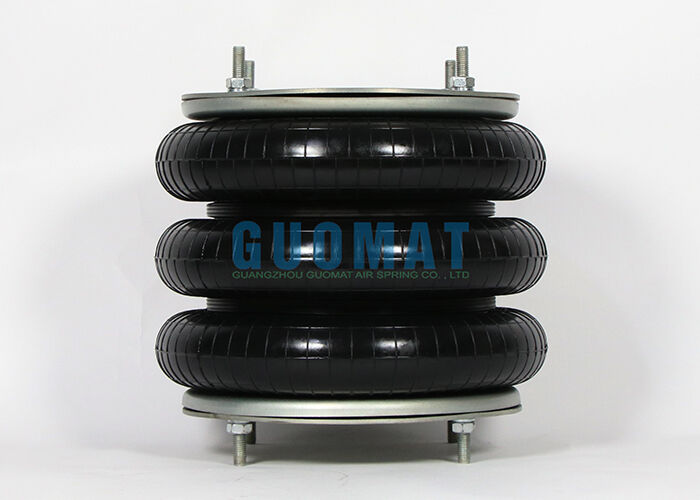

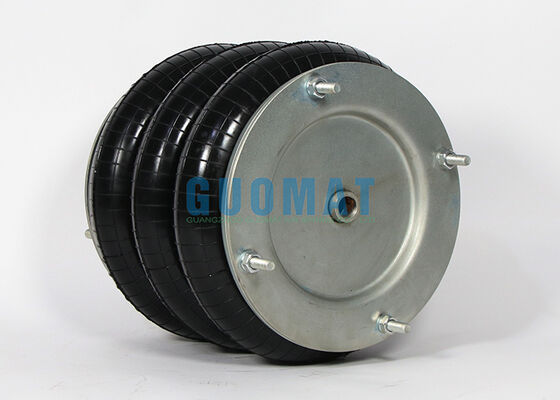

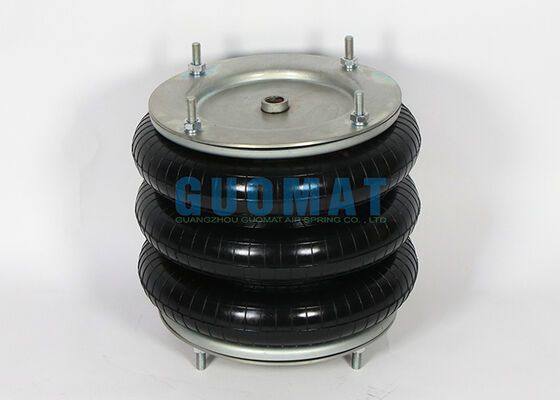

12" x 3 Triple Convoluted Suspension Air Spring Bellow W01-R58-4062 Firestone Air Isolator

12" x 3 Triple Convoluted Suspension Air Spring Bellow W01-R58-4062 Firestone Air Isolator

  • 12" x 3 Triple Convoluted Suspension Air Spring Bellow W01-R58-4062 Firestone Air Isolator
  • 12" x 3 Triple Convoluted Suspension Air Spring Bellow W01-R58-4062 Firestone Air Isolator
  • 12" x 3 Triple Convoluted Suspension Air Spring Bellow W01-R58-4062 Firestone Air Isolator
  • 12" x 3 Triple Convoluted Suspension Air Spring Bellow W01-R58-4062 Firestone Air Isolator
12" x 3 Triple Convoluted Suspension Air Spring Bellow W01-R58-4062 Firestone Air Isolator
Dettagli:
Luogo di origine: CINA
Marca: GUOMAT
Certificazione: ISO/TS16949:2009
Numero di modello: 3b12x3t
Termini di pagamento e spedizione:
Quantità di ordine minimo: 6 pezzi
Prezzo: US$169.9-199.9/PC
Imballaggi particolari: Robusta scatola di cartone o come richiesto dai clienti
Tempi di consegna: 3-7 giorni lavorativi
Termini di pagamento: L/C,D/A,D/P,T/T,Western Union
Capacità di alimentazione: 1000 pezzi/settimana
Contatto
Descrizione di prodotto dettagliata
Nome: Molla d'aria di gomma Certificazione: ISO TS15949
Compatibilità: Universale Temperatura: -40℃+70℃
Materiale: Gomma e Acciaio Soffietti no.: 12" X3
Convoluzioni: 3 Pietra focaia: W01R584062
Evidenziare:

12 inch triple convoluted air spring

,

Firestone suspension air isolator

,

W01-R58-4062 air spring bellow

12" x 3 Triple Convoluted Suspension Air Spring Bellow W01-R58-4062 Firestone Air Isolator
GUOMAT 3B12X3T is a heavy-duty triple convoluted rubber air spring designed as a direct replacement for Firestone W01-R58-4062 air spring bellows. Manufactured from premium natural rubber, high-strength reinforced cord fabric, and durable steel components, this air spring provides exceptional load-bearing capacity, vibration isolation, and shock absorption for industrial equipment and suspension systems.
The triple convoluted design offers a greater working stroke and higher vertical travel than single or double convoluted air springs, making it an ideal choice for applications requiring increased flexibility, stable load support, and excellent vibration control. The air spring automatically adjusts to varying loads while maintaining consistent operating height, helping improve equipment performance and reduce mechanical stress.
Product Specifications
Type: Suspension Air Spring
Model: 3B12X3T
Cross-Reference Part Numbers
Firestone: W01-R58-4062 / WO1-R58-4062
Firestone: W01 R58 4062 / WO1 R58 4062
Firestone: W01R584062 / WO1R584062
Contitech: FT412-32DS / FT 412-32DS / FT 412-32 DS
Dunlop: SP1542 / SP 1542
Norgren: M/31123 / M 31123 / M 31123
Parker: 9109051
Technical Specifications
Cover plate diameter: 260mm
Air vent: G1/2
Threaded hole: M8
Number of threaded holes: 4
Center distance between threaded holes: 232mm
Maximum outer diameter: 330mm
Minimum height: 100mm
Maximum height: 430mm
Pressure and Height Performance Data
Height H(mm) 3 bar 4 bar 5 bar 6 bar 7 bar 8 bar Vol. V(cm³)
1002165289136104332505257737948
15019322578322538684509515211318
20017042277284434133993456114685
25014621951243929363425392117360
30011931595199823972800320218982
3509241231153918512159246920046
400648862108112981513173120832
4304836458059671126128621310
12 inch triple convoluted suspension air spring bellow showing industrial construction and mounting details
