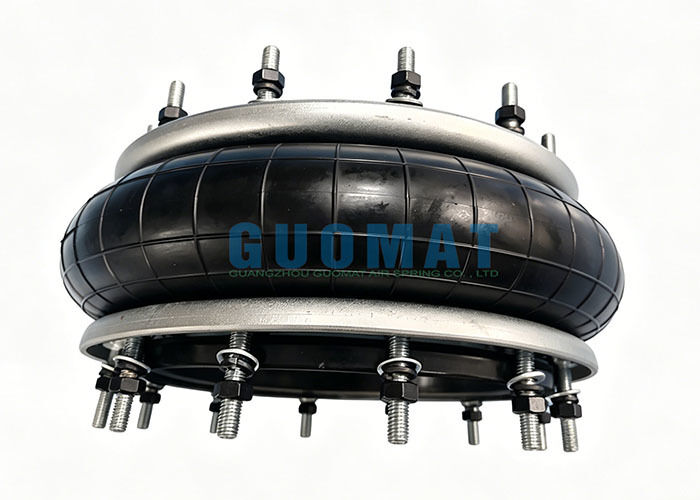

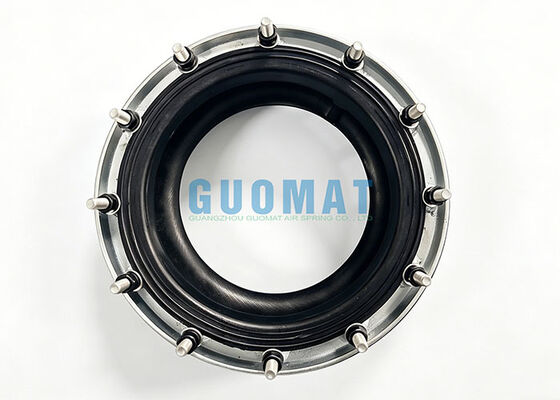

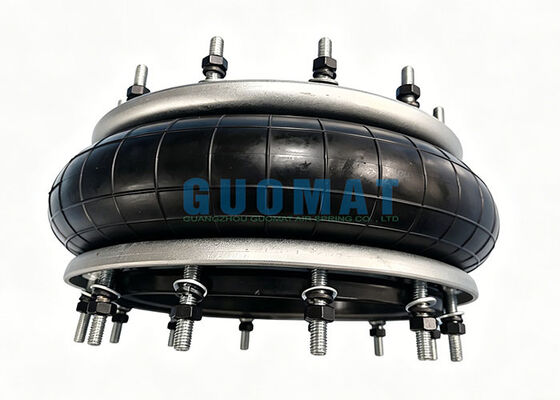

W01-358-7023 Firestone Convoluted Type Air Spring Style 19 Welding Flange Process Rubber Air Bags

Dettagli:

Luogo di origine:	Guangdong, Cina
Marca:	GUOMAT
Certificazione:	ISO/TS16949:2009
Numero di modello:	1H7023

Termini di pagamento e spedizione:

Quantità di ordine minimo:	6 pezzi
Prezzo:	$159.9-199.9/pc
Imballaggi particolari:	Robusta scatola di cartone o come richiesto dai clienti
Tempi di consegna:	2-8 giorni lavorativi
Termini di pagamento:	L/C,T/T,Western Union
Capacità di alimentazione:	1000 pezzi/settimana

Contatto

Descrizione di prodotto dettagliata

Nome del prodotto:	Molla d'aria flange	Garanzia:	1 anno
Materiale:	Gomma + acciaio	Operazione:	Pieno di gas
Bullone:	M8*1.25	Numero corsivo:	Pietra refrattaria W01-358-7023
Intervallo di temperatura:	- 40°C / +70°C	Stile:	19
Evidenziare:	Firestone convoluted air spring , welding flange rubber air bags , industrial air spring with warranty

W01-358-7023 Firestone Convoluted Type Air Spring Style 19 Welding Flange Process Rubber Air Bags

Product Overview

Brand: GUOMAT

Model Name: 1H7023

Type: Convoluted Type Air Spring

Material: Rubber and Steel

Warranty: 12 Months

OEM & Cross Reference Numbers

FIRESTONE STYLE: 18
FIRESTONE Part Number: W01-358-7023
FIRESTONE Part Number: W01 358 7023
FIRESTONE Part Number: W013587023
FIRESTONE Part Number: WO1-358-7023
FIRESTONE Part Number: WO1 358 7023
FIRESTONE Part Number: WO13587023

Technical Specifications

Flange diameter	250mm
Bolts	12pcs - M8*1.25
Bolt height	36mm
Inner diameter	183.5mm
Natural height	110mm
Minimum height	50.8mm
Maximum height	152.4mm

Welded Flange Air Spring Design

Welded flange air springs use a permanently welded steel flange to connect the top/bottom plate, providing a stronger and more reliable structure compared to crimped designs.

Key Features

High Strength Connection - Welded structure ensures durability under heavy load and vibration
Excellent Air Tightness - Reduced risk of air leakage, longer service life
Stable Installation - Firm mounting, no loosening during operation
Fatigue Resistant - Suitable for continuous compression cycles

Firestone Style 19 Compatible Parts

Blind nuts, 1/4 NPT
W013587008, W01-358-7008, W01 358 7008

Blind nuts, 1/4 NPT, bumper
W013587009, W01-358-7009, W01 358 7009

Blind nuts, 3/4 NPT
W013587011, W01-358-7011, W01 358 7011

Blind nuts 3/4 NPT, bumper
W013587012, W01-358-7012, W01 358 7012

Countersunk steel bead rings 15/8 bolts, nuts, washers
W013587023, W01-358-7023, W01 358 7023

Rubber bellows only
W013580134, W01-358-0134, W01 358 0134

Product Drawing
