FT 614-36 DS Contitech Industrial Air Spring 14''1/2X3 Triple Convoluted Type Rubber Bellows

Dettagli:

Luogo di origine:	Guangdong, Cina
Marca:	GUOMAT
Certificazione:	ISO/TS16949, ISO9001
Numero di modello:	3B14.5X3T

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1
Prezzo:	negoziabile
Imballaggi particolari:	Strong carton box o come requisito dei clienti
Tempi di consegna:	5-8 giorni lavorativi
Termini di pagamento:	L/C, D/A, D/P, Western Union
Capacità di alimentazione:	1000pc/settimana

Contatto

Descrizione di prodotto dettagliata

Garanzia:	Un anno	Dado):	M10
Pacchetto di trasporto:	Cartoni	Marchio:	Guomat
Funzione:	Ridurre le vibrazioni	Contitech:	FT 614-36 DS
Fuocozone:	W01R584065	Soffietti no.:	14''1/2X3
Evidenziare:	Contitech industrial air spring , Triple convoluted rubber bellows , 14.5x3 air spring bellow

FT 614-36 DS Contitech Industrial Air Spring 14''1/2X3 Triple Convoluted Type Rubber Bellows

Product Introduction

Flange air spring is an ideal choice for air suspension system. It is a device that provides support and shock absorption through compressed air and is widely used in vehicles such as cars, trucks, motorcycles, etc. Compared with traditional steel springs, flange air springs have more advantages and functions.

Brand: GUOMAT

Model Number: 3B14.5X3T

Material: Rubber and Steel

Warranty: 1 Year

Compatible Replacement Parts

Continental ContiTech: FD 614-36 DS 68047

Continental ContiTech: FD 614-36 1/2 M10

Continental ContiTech: FD 614-36 DS G1/2

Continental ContiTech: FD 614-36 DS G1/2 M10

Continental ContiTech: FD 614-36 DS / FD614-36DS / FD614 36DS

Continental ContiTech Bellow: FD 614-36/FD314-36/FD31436

Firestone No.:W01-R58-4065/W01R58 4065/W01R584065

Firestone No.: W01-R58-4065/W01R58 4065/W01R584065

Firestone Style:14"1/2x2/14"1/2x2/14.5x2

Dunlop FR: 14"1/2 x2 SP1558

Norgren: M/31143/M 31143/M31143

NominalØ (inch)x convolutions: 14"1/2x2/14"1/2x2/14.5x2

Parker: 14''1/2x2 9109069

Technical Data

Specification	Value
Maximum Height	480mm
Minimum Height	100mm
Cover Plate Diameter	310mm
Bolts	M10
Air Fitting	G1/2
Center Distance Between Bolts	282.5mm
Maximum Outer Diameter	400mm

Height H(mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Vol V(I)
400	13.3	18	22.8	27.9	33.3	38.9	28
420	11.8	16	20.4	25	30.1	35.3	28
350	16.7	22.4	28.2	34.2	40.5	46.9	25
300	19.4	26	32.5	39.3	46.3	53.5	22
250	21.8	29	36.4	43.8	51.7	60.5	18
200	24.7	32.9	41.1	49.6	58.5	67.4	14
150	27.6	36.6	45.7	55	64.6	74.2	10

Air Spring Features

Structure: It typically consists of a flexible rubber bladder filled with compressed air (called the "air bladder") and two metal components (called the "upper cover" and the "piston" or "lower cover").

Working Principle: When the external load increases, the air inside the air bladder is compressed, increasing the pressure and thus providing greater support. When the load decreases, the air expands, and the pressure decreases. Its stiffness and height can be precisely controlled by adjusting the internal air pressure.

Main Functions: Vibration isolation, shock absorption, support, and height adjustment.

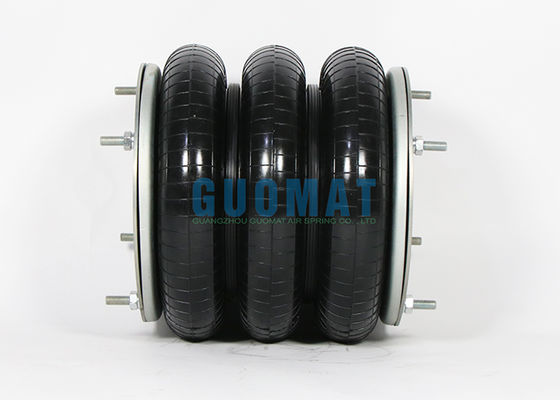

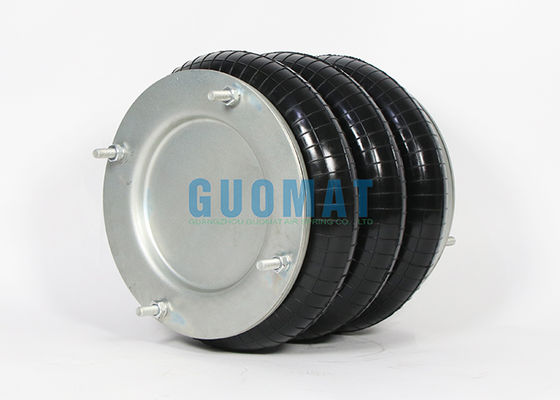

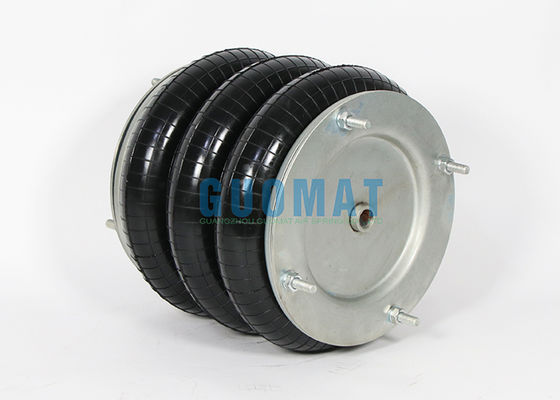

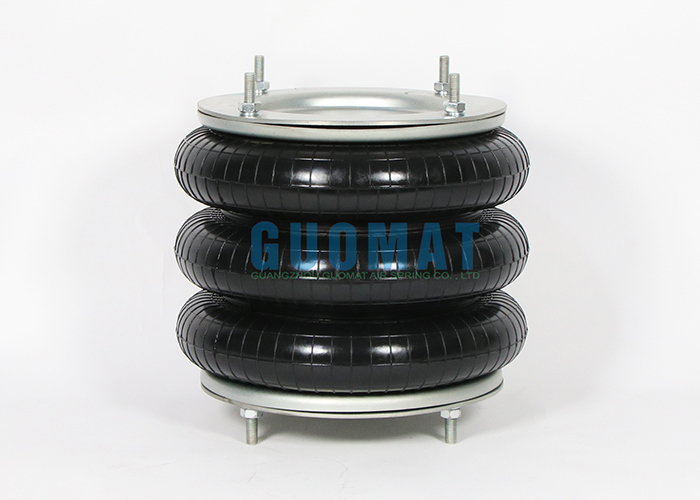

Product Images
