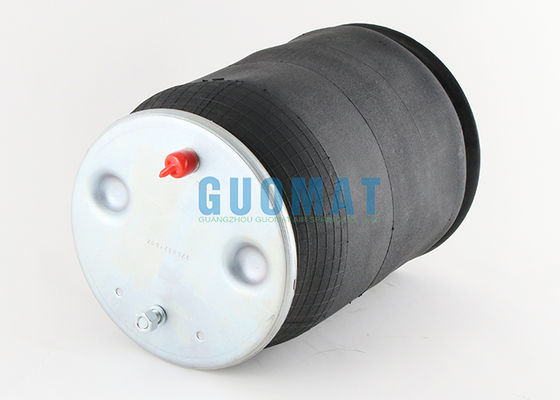

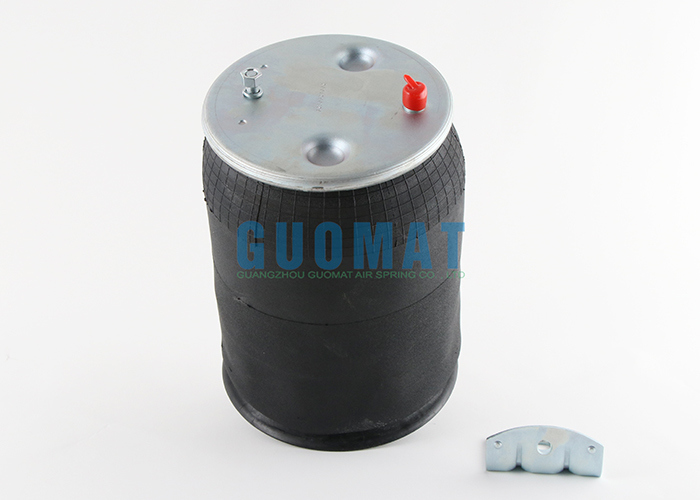

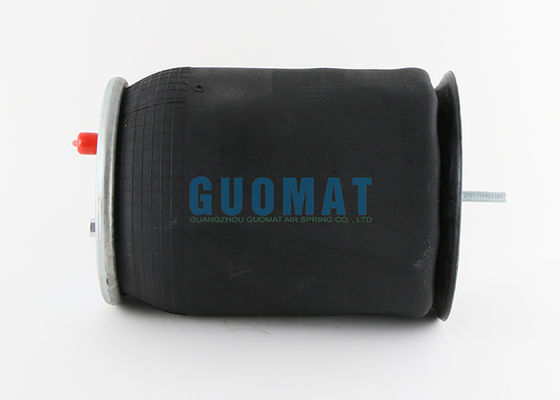

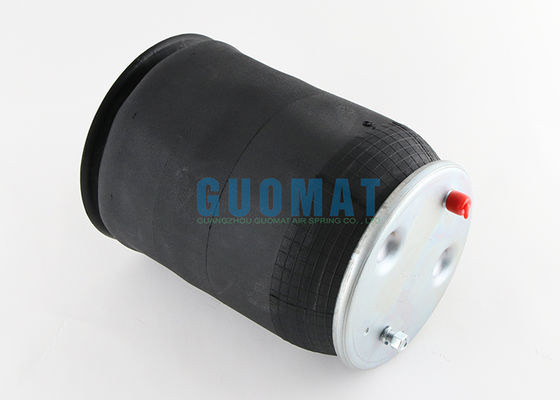

1R12-432 Goodyear Suspension Air Spring 566-24-3-066 Trailer Air Bags Replacement Assembly

Dettagli:

Luogo di origine:	Guangzhou Cina
Marca:	GUOMAT
Certificazione:	ISO/TS16949, ISO9001
Numero di modello:	1T6032

Termini di pagamento e spedizione:

Quantità di ordine minimo:	5 pezzi
Prezzo:	USD79.9-89.9/PC
Imballaggi particolari:	Strong carton box o come requisito dei clienti
Tempi di consegna:	3-7 giorni lavorativi
Termini di pagamento:	L/C, T/T, Western Union o altri
Capacità di alimentazione:	1000pc/settimana

Contatto

Descrizione di prodotto dettagliata

Goodyear no.:	1R12-432	Materiale:	Gomma naturale
Funzione:	Ridurre lo shock	Tipo:	Pieno di gas
Applicazione:	Sistema di sospensione del camion	Peso a molla:	5.833
Firestone:	W01-358-98751T15MT-9	Pistone:	Plastica
Evidenziare:	Goodyear trailer air spring assembly , Truck air suspension replacement bag , 1R12-432 air spring with warranty

1R12-432 Goodyear Suspension Air Spring 566-24-3-066 Trailer Air Bags Replacement Assembly

Product Details

Item	Rubber Bellows Truck Air Spring
Material	High Quality Rubber
Warranty	12 Months
Model No.	1T 6032
Condition	Brand New
Application	Truck / Trailer
Function	Reduce Vibration
Color	Black
Delivery Time	2-8 working days

Replaces These Air Springs

Cross FIRESTONE: W01-358-9875 / WO1-358-9875
Cross FIRESTONE: W01 358 9875 / WO1 358 9875
Cross FIRESTONE: W013589875 / WO13589875
Cross FIRESTONE: 1T15MT-9
Cross GOODYEAR: 1R12-432
Cross GOODYEAR: 1R 12-432
Cross GOODYEAR: 1R12 432
Cross GOODYEAR: 1R12432
Cross GOODYEAR: 566243066
Cross GOODYEAR: 566 24 3 066
Cross GOODYEAR: 566-24-3-066
Cross NAVISTAR: 3541731C1
Cross DALLAS: AS9900

Technical Data

Maximum Height	600mm
Minimum Height	200mm
Stroke	400mm
Outer Diameter	270mm
Cover Plate Diameter	231mm
Base Diameter	255mm
Piston Height	140mm
Screw	M12x1.75
Air Hole	1/4NPTF

Compatibility Specifications

Firestone	Flex Number	Piston	Tape	Bottom Plate Feature	Top Plate Feature	Bottom Plate Dia	Bottom Plate Dia	Collapsed Height
W01-358-9382	1T15M-9	-	-	-	-	-	-	-
W01-358-8866	1T15M-9	-	-	-	-	-	-	-
W01-358-9106	1T15M-9	-	-	-	-	-	-	-
W01-358-9241	1T15M-9	-	-	-	-	-	-	-
W01-358-9102	1T15M-9	-	-	-	-	-	-	-
W01-358-9130	1T15M-9	-	-	-	-	-	-	-
W01-358-9876	1T15M-9	-	-	-	-	-	-	-
W01-358-8856	1T15M-9	9532	P	1	1	9	10.25	7.3
W01-358-8855	1T15M-9	9530	P	1	4	9	10.25	7.3
W01-358-9101	1T15M-9	-	-	2	-	9	-	-
W01-358-9192	1T15M-9	-	-	2	-	9	-	-
W01-358-9245	1T15M-9	-	-	2	-	9	-	-
W01-358-9346	1T15M-9	-	-	2	-	9	-	-
W01-358-8842	1T15M-9	9532	P	2	1	9	10.25	7.9
W01-358-9243	1T15M-9	9532	P	2	1	9	10.25	7.4
W01-358-9203	1T15M-9	9530	P	2	4	9	10.3	8
W01-358-9238	1T15M-9	9553	P	2	4	9	10.3	10
W01-358-9349	1T15M-9	9553	P	2	4	9	10.3	10.1
W01-358-9348	1T15M-9	9553	P	2	4	9	10.3	10.6
W01-358-8861	1T15M-9	9530	P	2	4	9	10.25	7.9
W01-358-9240	1T15M-9	9553	P	2	4	9	10.25	9.2
W01-358-9394	1T15M-9	9553	P	2	5	9	10.3	9.2
W01-358-9350	1T15M-9	9553	P	2	5	9	10.3	9.2
W01-358-8864	1T15M-9	9531	P	3	1	9	8.05	7.75
W01-358-8852	1T15M-9	9532	P	3	1	9	10.25	6.7
W01-358-9646	1T15MBTW-10	9532	P	2	1	9	10.25	7.4
W01-358-9645	1T15MBTW-12	9540	P	2	1	9	10.25	9.2
W01-358-9644	1T15MBTW-6	9532	P	2	1	9	10.25	7.4
W01-358-8944	1T15MW-7	9694	A	1	4	9	11.06	7.3
W01-358-9265	1T15MM-9	9694	A	1	4	9	11.06	7.3
