TRL230LLH Truck Suspension Air Spring HINO HN 700 RR Trailer Rubber Air Bags

Dettagli:

Luogo di origine:	Guangzhou Cina
Marca:	GUOMAT
Certificazione:	ISO/TS16949, ISO9001
Numero di modello:	1T TRL230LLH

Termini di pagamento e spedizione:

Quantità di ordine minimo:	5 pezzi
Prezzo:	USD79.9-99.9/PC
Imballaggi particolari:	Strong carton box o come requisito dei clienti
Tempi di consegna:	3-7 giorni lavorativi
Termini di pagamento:	L/C, T/T, Western Union o altri
Capacità di alimentazione:	1000pc/settimana

Contatto

Descrizione di prodotto dettagliata

Numero di parte:	TRL230LLH	Materiale del prodotto:	Gomma e acciaio
Make auto:	camion o rimorchio	Qualità:	Testato al 100 %
FUZIONE:	Ridurre lo shock	Codice SA:	8708809000
Servizio post-vendita:	12 mesi	altro nome:	Molla pneumatica del camion
Evidenziare:	HINO HN 700 air spring , truck suspension rubber air bags , trailer air spring with warranty

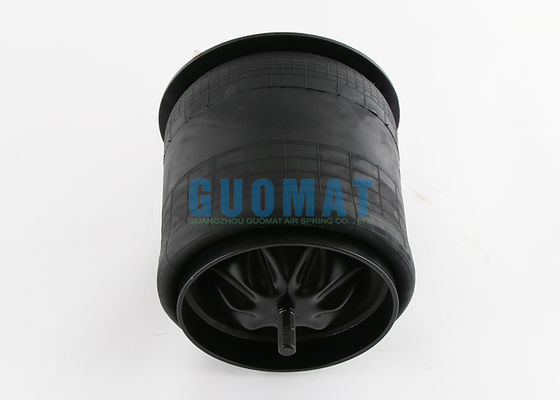

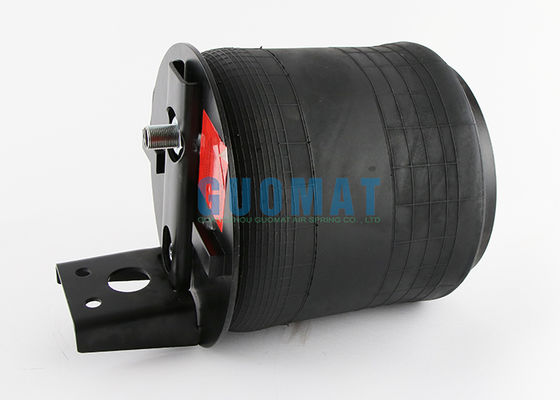

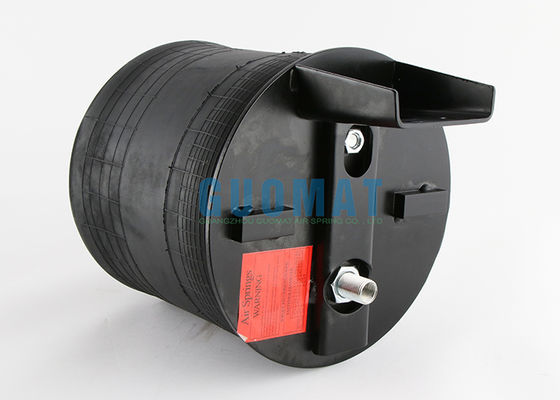

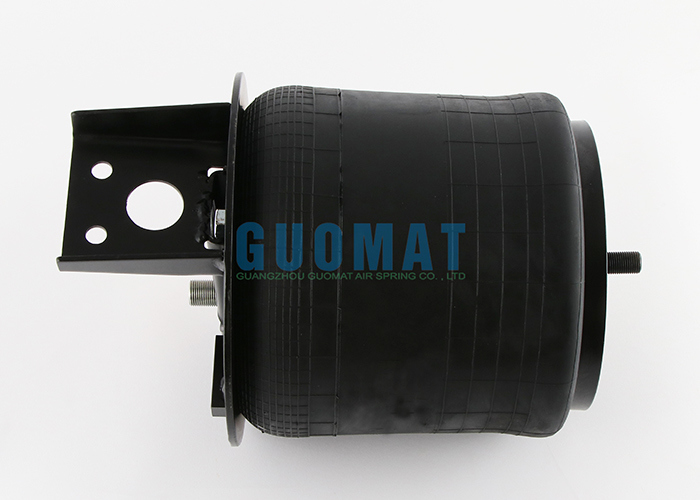

TRL230LLH Truck Suspension Air Spring HINO HN 700 RR Trailer Rubber Air Bags

Specifications and Detailed Technical Parameters

320mm natural height; 220mm minimum height; 620mm maximum height; 255mm cover plate diameter; M12X1.25 stud; 200mm piston diameter; 168mm piston height.

Brand: GUOMAT
Model Name: Truck Air Suspension
OEM: HINO TRL230LLH
OEM: HINO TRL230LLH HN 700 RR
Working Temperature: -40°C bis +70°C
Failure Testing: ≥3 millions

TRL230LLH Truck Suspension Air Spring - Rubber Airbag Specifically Designed for Hino HN 700 RR Trailers

This air spring plays a crucial role in the truck suspension system:

Body Support: Provides primary support to the trailer by compressing air inside, bearing the weight of the cargo.
Shock Absorption: Effectively filters and absorbs bumps and vibrations from the road surface using the elasticity of air, protecting cargo and the vehicle structure.
Height Adjustment: Helps maintain a relatively stable ride height regardless of load changes.
Improved Ride Smoothness: Provides a smoother, more stable ride for the trailer, reducing impact.

Key Features

Material: Made of high-strength, wear-resistant rubber, typically reinforced with internal cord layers to withstand high pressure and heavy loads.
Structure: As the core elastic element of the suspension system, its shape and structure are specifically designed to match the suspension of the HN 700 RR trailer.
Reliability: Designed to withstand the harsh operating environments of commercial vehicles, requiring excellent fatigue resistance, aging resistance, and weather resistance.

Application Scenarios

This part is a repair replacement. It is used to replace and repair the original air springs when they fail due to aging, wear, tear, or accidental damage, restoring the trailer suspension to normal function.

Specifications

Applicable Vehicles	Designed specifically for Hino trucks, especially the TRL230LLH model.
Material	Made of durable natural rubber.
Mounting Location	Typically for rear suspension.
Weight	Approx. 10 kg.
Packaging Dimensions	115 x 80 x 80 cm.
