W01-M58-6107 Firestone Suspension Rubber Bellows 1/4 BSP Double Convoluted Air Spring

W01-M58-6107 Firestone Suspension Rubber Bellows 1/4 BSP Double Convoluted Air Spring

  • W01-M58-6107 Firestone Suspension Rubber Bellows 1/4 BSP Double Convoluted Air Spring
  • W01-M58-6107 Firestone Suspension Rubber Bellows 1/4 BSP Double Convoluted Air Spring
  • W01-M58-6107 Firestone Suspension Rubber Bellows 1/4 BSP Double Convoluted Air Spring
W01-M58-6107 Firestone Suspension Rubber Bellows 1/4 BSP Double Convoluted Air Spring
Dettagli:
Luogo di origine: Guangdong, Cina
Marca: GUOMAT
Certificazione: ISO/TS16949, ISO9001
Numero di modello: 2B6107
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1
Prezzo: US$59.9-69.9/PC
Imballaggi particolari: Strong carton box o come requisito dei clienti
Tempi di consegna: 5-8 giorni lavorativi
Termini di pagamento: L/C, D/A, D/P, Western Union
Capacità di alimentazione: 1000pc/settimana
Contatto
Descrizione di prodotto dettagliata
Qualità: Testato al 100 % Servizio post-vendita: 12 mesi
Foro d'aria: 1/4 di BSP Firestone: W01-M58-6107
Convoluzioni: 2 Metodo di connessione: Dadi ciechi
Max.Height: 394mm Min, altezza: 77mm
Evidenziare:

Firestone Suspension Air Spring

,

Double Convoluted Air Spring

,

1/4 BSP Rubber Bellows

W01-M58-6107 Firestone Suspension Rubber Bellows 1/4 BSP Double Convoluted Air Spring

The GUOMAT 2B6107 is a double-curved air spring with the exact same specifications as the Firestone W01-M58-6107. Its signature "gourd-shaped" design provides excellent stability and flexible travel through a central waist ring.

It is primarily used in the suspension systems of commercial vehicles such as buses and trucks. Its core function is to dampen road vibrations, automatically adjust the vehicle height, thereby improving ride comfort, protecting cargo, and maintaining vehicle stability. This is a highly reliable component designed specifically for heavy-duty operating conditions.

Product Characteristics
Cover Plate
Top Cover Plate Diameter 287 mm
Screw Center Distance of Top Cover Plate 159 mm
Bottom Cover Plate Diameter 287 mm
Screw Center Distance of Bottom Cover Plate 159 mm
Nut/Blind Nuts
Top Cover Plate Threaded Hole M8X1.25
Bottom Cover Plate Screw(Nut) Tooth M8X1.25
Gas Hole/Air Inlet/Air Fitting
Air Hole 1/4BSP
Rubber Bellow
Rubber Bellow Max. Diameter 394 mm
Minimum Height 77 mm
Maximum Height 394 mm
Part Number Model
FIRESTONE OEM NUMBER: W01-M58-6107
FIRESTONE OEM NUMBER: W01 M58 6107
FIRESTONE OEM NUMBER: W01M586107
FIRESTONE OEM NUMBER: 233-2
Assembly Height (mm) Volume@7 BAR (cu cm) kN Force @3BAR @4BAR @5BAR @6BAR @7BAR @8BAR
320 26307 560 14.44 50.52 26.35 33.20 39.23
280 23714 653 17.82 24.56 31.24 38.87 45.73
240 20846 729 20.39 27.85 35.13 43.41 51.04
200 17673 799 22.69 30.81 38.73 41.65 55.94
160 14250 859 24.68 33.30 41.87 51.34 60.11
120 10748 892 25.94 34.86 43.76 53.44 62.41
80 6382 889 26.62 35.40 44.31 53.60 62.25

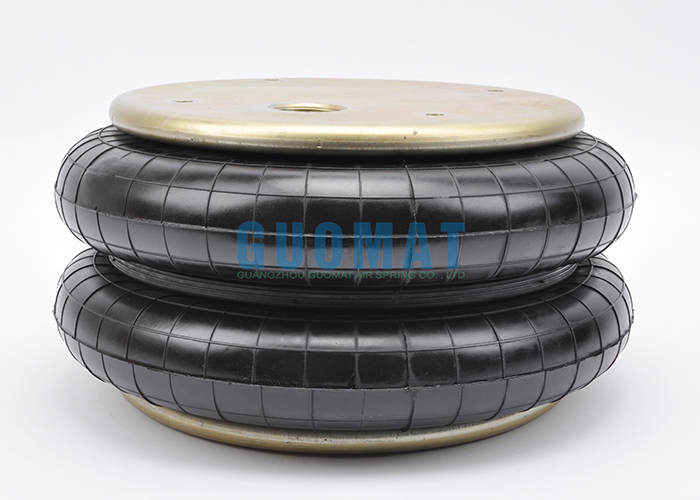

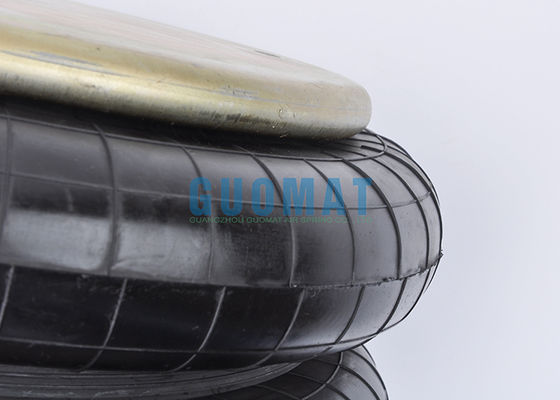

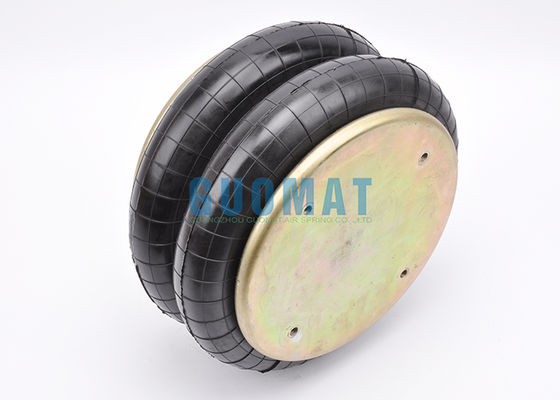

Product Images
W01-M58-6107 Firestone Suspension Rubber Bellows 1/4 BSP Double Convoluted Air Spring 0 W01-M58-6107 Firestone Suspension Rubber Bellows 1/4 BSP Double Convoluted Air Spring 1
