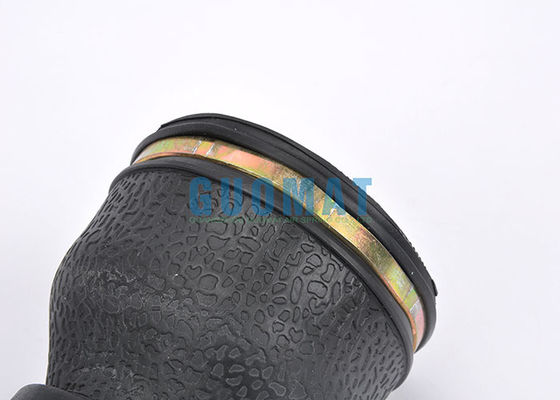

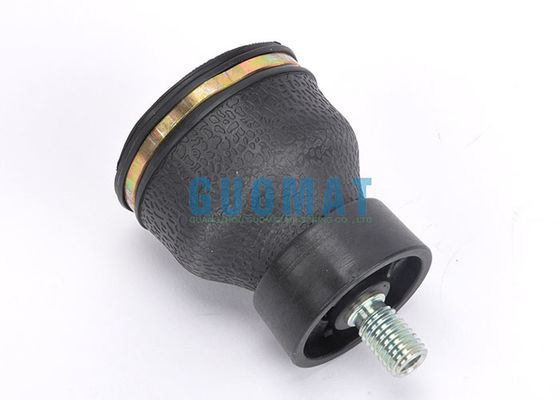

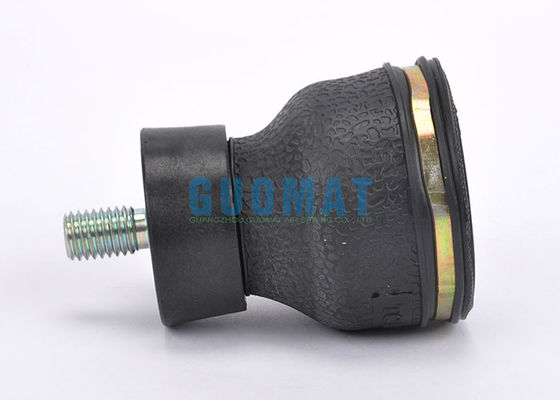

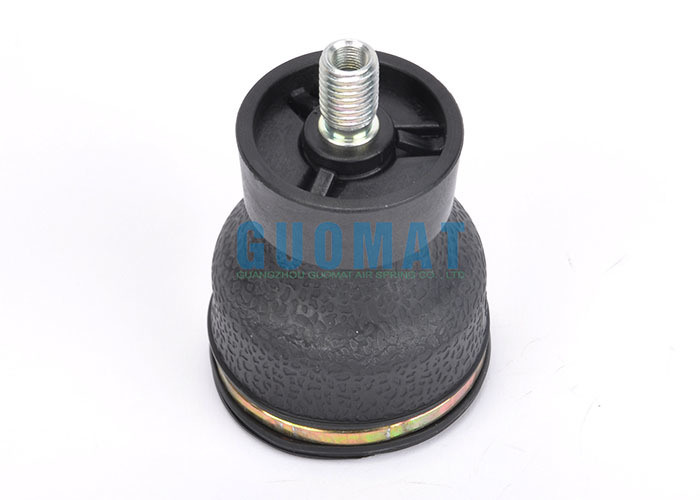

W02-358-3000 Firestone Style 1M1A-0 Cab Air Shock Absorber 1/8NPT Seat Air Spring

Dettagli:

Luogo di origine:	Guangdong, Cina
Marca:	GUOMAT
Certificazione:	ISO/TS16949:2009
Numero di modello:	G3000

Termini di pagamento e spedizione:

Quantità di ordine minimo:	6pcs
Prezzo:	$39.9-49.9/pc
Imballaggi particolari:	scatola di cartone forte o come clienti hanno bisogno
Tempi di consegna:	2-8 giorni di lavoro
Termini di pagamento:	T/T, Western Union, L/C
Capacità di alimentazione:	1000pc/settimana

Contatto

Descrizione di prodotto dettagliata

Nome articolo:	Ammortizzatore dell'aria della carrozza	Garanzia:	Garanzia di 1 anno
Qualità:	Testato al 100 %	Posizione:	Per i sedili del driver
Firestone:	W02-358-3000	Adattamento dell'aria:	1/8NPT
Materiale per stallone:	Plastica	Colore:	Nero
Evidenziare:	Firestone cab air shock absorber , 1M1A-0 seat air spring , 1/8NPT cab shock absorber

W02-358-3000 Firestone Style 1M1A-0 Cab Air Shock Absorber 1/8NPT Seat Air Spring

Product Description

Product: Sleeve Air Bags
For Truck: Cab Seats for General Trucks
Brand: GUOMAT
Model No.: G3000
Material: Plastic
Warranty: 12 Months
Condition: New
Items Included: Mount
Universal Fitment: Yes
Packing: Neutral Packing or Customization

OEM Reference Number

Firestone OEM Part Number: W02-358-3000, W02 358 3000, W023583000

Firestone Bellows Part Number: 1M1A-0, 1 M1A-0, 1 M 1A-0

Other Firestone Models with the Same Style 1M1A-0:
Firestone Assembly Part Number: W02-358-3001, W02 358 3001, W023583001
Firestone Assembly Part Number: W02-358-3005, W02 358 3005, W023583005

GUOMAT G3000 Technical Data

5/16-18 Threaded Hole
2.88 Top Cover Plate Diameter
3.4 Max Outer Diameter
1/8NPT Air Inlet
2.4 Bottom Diameter
3.5 Max.Height
1.5 Min.Height

Volume @ 100PSIG=9.2in³ | Natural Frequency
Gage Pressure(PSIG)	Load(lbs.)	Spring Rate(lbs./in.)	CPM	HZ
40	210	336	235	3.92
60	330	467	224	3.73
80	450	619	220	3.67
100	570	740	214	3.57

Advantages of Installing GUOMAT G3000 Air Springs

Infinitely Adjustable Suspension Stiffness: Adjust at any time according to different situations:
- Single Ride: Lower air pressure for softer, more comfortable experience
- Dual Ride/Carrying Heavy Loads: Increase air pressure for strong support
- Highway Cruise: Increase air pressure for greater stability
- City Driving: Lower air pressure for better bump absorption
Improved Handling and Stability: Reduces body roll and sway at high speeds
Maintaining Ride Height: Prevents sag under heavy loads
Relatively Easy Installation: DIY-friendly upgrade kit
