FD 330-22 CI Original ContiTech Air Actuator 1/4NPT Air Fitting Air Springs Bellows

Dettagli:

Place of Origin:	Germany
Marca:	Contitech
Certificazione:	ISO/TS16949:2009
Model Number:	FD 330-22

Termini di pagamento e spedizione:

Minimum Order Quantity:	6PCS
Prezzo:	$69.9-119.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contatto

Descrizione di prodotto dettagliata

Type:	Air Spring, Airbags, Air Suspension Spring	Warranty:	12 Months
Operation:	Gas-Filled	Quality:	100% Tested
Package:	Brown Cartons	Brand:	Contitech
Model Number:	FD 330-22	Stroke:	3.0in-12.0in

FD 330-22 CI Original ContiTech Air Actuator 1/4NPT Air Fitting Air Springs Bellows

Product Information

Contitech Air Spring

FD 330-220CI
1/4NPT Air Fitting
Double Convoluted Type
One Year Limitrd Warranty

Diameter of upper cover: 8.98in

Threaded holes of upper cover: 2x3/8UNC,0.95in

Air holes of upper cover: 1/4NPT

Center distance between threaded holes of upper cover: 6.2in

Distance between threaded holes and air holes of upper cover: 2.87in

Diameter of lower cover: 8.98in

Threaded holes of lower cover: 2x3/8UNC,0.95in

Center distance between threaded holes of lower cover: 6.2in

The rubber bellows max outer diameter: 12.8in

The max height: 12.0in

The min height: 3.0in

The Cross Reference Number

Contitech No.	OEM No.
FD 330-22 363	Firestone W01-358-7180 Goodyear 2B14-425/578923309 Goodyear 2B14-311/578923309 Triangle 6316/4363 Airkraft 115061/3B-356
FD 330-22 472	Firestone W01-358-7181 Goodyear 2B12-411/578923309 Triangle 6316/4472
FD 330-22 471	Firestone W01-358-7183 Goodyear 2B12-412/578923309 Triangle 6316/4471
FD 330-22 500	Firestone W01-358-7344 Goodyear 2B12-304 Triangle 6316/4500
FD 330-22 313	Firestone W01-358-7400 Goodyear 2B12-309/578923309 Goodyear 2B12-316/578923309 Triangle 6316/4313
FD 330-22 337	Firestone W01-358-7401 Goodyear 2B12-320/578923309 Triangle 6316/4334
FD 330-22 318	Firestone W01-358-7403 Goodyear 2B12-307/578923309 Goodyear 2B12-433/578923309 Goodyear 2B12-445/578923309
FD 330-22 346	Firestone W01-358-7404 Goodyear 2B12-410/578923309 Goodyear 2B12-312/578923309 Triangle 6316/4346
FD 330-22 364	Firestone W01-358-7405 Goodyear 2B12-313/578923309 Goodyear 2B12-459/578923309 Triangle 6316/4364

Applications
• Material handling industry
• Lumber industry
• Aluminum can recycling
• Container manufacturers
• Paper industry
• Press manufacturing
• Vibrating equipment and conveyors
• Vibrating screens
• Steel manufacturing equipment
• Automotive related (flat glass)

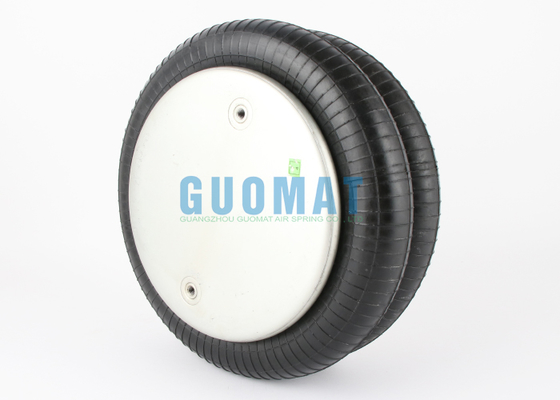

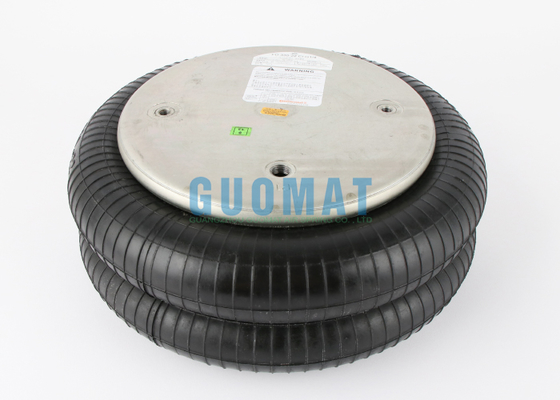

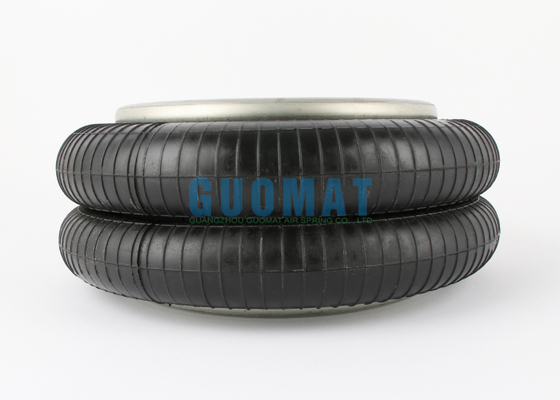

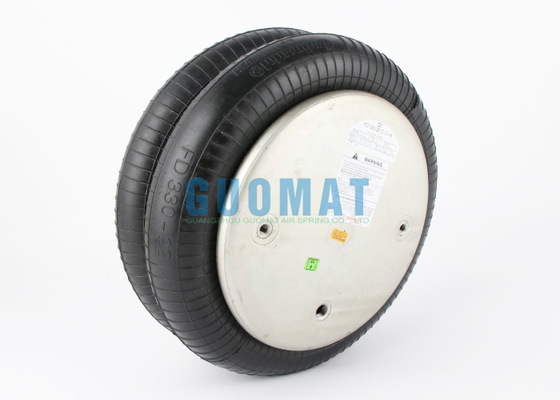

Product Picture

FD 330-22 CI Original ContiTech Air Actuator 1/4NPT Air Fitting Air Springs Bellows 0
