| Luogo di origine: | Guangdong, Cina |
| Marca: | GOODYEAR |
| Certificazione: | ISO/TS16949 |
| Numero di modello: | 1R10-085 |
| Quantità di ordine minimo: | 1pc |
|---|---|
| Prezzo: | $59-159/pc |
| Imballaggi particolari: | forte contenitore di cartone o come bisogno del cliente |
| Tempi di consegna: | 2-8 giorni del lavoro |
| Termini di pagamento: | T/T, Western Union, Paypal o altri |
| Capacità di alimentazione: | 1000pcs/week |
| Materiale: | Soffietti di gomma, pistone d'acciaio | Goodyear: | 1R10-085 |
|---|---|---|---|
| L'altro nome: | Molla pneumatica di rotolamento di GOODYEAR | Coperchio OD: | A 9,0 pollici |
| pistone: | IL PISTONE NON HA INCLUSO | Soffietti NO.: | 566-22-3-021 |
| Evidenziare: | FIRESTONE W013589017,Molla pneumatica di N15558 Goodyear,1R10-085 |
||
Super-Cushion 1R10-085 Goodyear Air Spring BELLOWS NO. 566-22-3-021 FIRESTONE W013589017 For NOVABUS N15558
1R10-085 this kind of air spring is produced by Goodyear.We imported this kind of air spring from Amercia.
1R10-085 Goodyear Air Spring-Rolling Air Bag 1R10-085 describes Goodyear's sleeve type air spring will use a flexible member without internal molded beads. The bladder model is 566-22-3-021, and the flexible piece is connected to the end of the holder by pinching the material between the end and the external crimping ring, and then adjusting it to an appropriate diameter.
OEM Cross Number:
Manufacturer GOODYEAR
Brand GOODYEAR
GOODYEAR 1R10-085;
GOODYEAR Part NO.1R10 085;
GOODYEAR Part NO.1R10085.
GOODYEAR Bellows NO. 566-22-3-021;
GOODYEAR 566 22 3 021;
GOODYEAR 5662230221;
GOODYEAR without PISTON
FIRESTONE LES AUTOBUS
9017 661759C
W013589017
FLXIBLE N15558
661759A 661759C 667302 677302 8875032 G1019449
97-240-153
PREVOST GMC 63-0044
NOVABUS
TMC
661759C
OEM Suspension Supplier Number:
Goodyear Number: 1R10-085

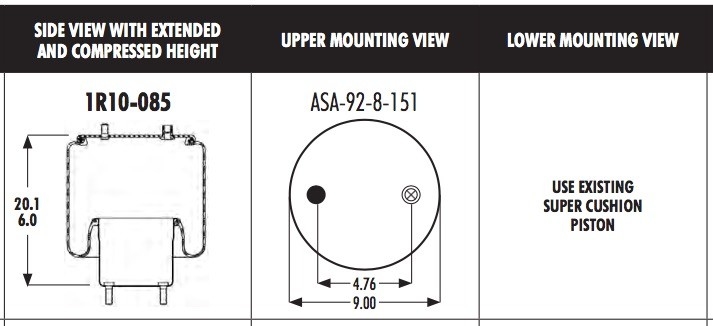

Bellows type:
Ultraman Bellow Number:
Firestone bellows Number:
Goodyear Bellows Number: 566-22-3-021
Contitech bellows Number:
Triangle bellows Number:
Base plate/neutron type: Without
Number of top plate holes/studs: 2
Top plate diameter: 9
Top plate C to C diameter: 4.76
Base plate hole bolt Qyt: Without
Diameter of base plate: Without
Diameter of base plate C to C: Without
Base plate part number: Without
Bottom plate alignment: Without
Bumper: No
Bracket: Not applicable
Minimum height: 6
Maximum height: 20.1
| 56620208500000 | 20092052 | Y | 1R10-085 | 1R10-085 |
| 1R10-085 | 20116559 | N | 1R10-085 Rolling Lobe Air Spring | 1R10-085 Rolling Lobe Air Spring |
| 56620208700000 | 20092059 | Y | 1R10-087 | 1R10-087 |
| 1R10-087 | 20127494 | N | 1R10-087 Rolling Lobe Air Spring | 1R10-087 Rolling Lobe Air Spring |
| 56620208800000 | 20138635 | Y | 1R10-088 | 1R10-088 |
| 56620208900000 | 20092063 | Y | 1R10-089 | 1R10-089 |
| 1R10-089 | 20092064 | N | 1R10-089 Rolling Lobe Air Spring | 1R10-089 Rolling Lobe Air Spring |
| 56620209000000 | 20092068 | Y | 1R10-090 | 1R10-090 |
| 1R10-090 | 20116560 | N | 1R10-090 Rolling Lobe Air Spring | 1R10-090 Rolling Lobe Air Spring |
| 56620209100000 | 20092070 | Y | 1R10-091 | 1R10-091 |
| 1R10-091 | 20092071 | N | 1R10-091 Rolling Lobe Air Spring | 1R10-091 Rolling Lobe Air Spring |
| 56620209300000 | 20092076 | Y | MCI 12L-4-5 1R10-093 | MCI 12L-4-5 1R10-093 |
| 56620209300004 | 20035857 | Y | 1R10-093 | 1R10-093 |
| 56620209900000 | 20092084 | Y | 1R10-099 | 1R10-099 |
| 1R10-099 | 20137340 | N | 1R10-099 Rolling Lobe Air Spring | 1R10-099 Rolling Lobe Air Spring |
| 56620210100000 | 20092086 | Y | 1R10-101 | 1R10-101 |
| 1R10-101 | 20116561 | N | 1R10-101 Rolling Lobe Air Spring | 1R10-101 Rolling Lobe Air Spring |
| 56620210200000 | 20092088 | Y | 1R10-102 | 1R10-102 |
| 56620210500000 | 20092090 | Y | 1R10-105 | 1R10-105 |
| 1R10-105 | 20116562 | N | 1R10-105 Rolling Lobe Air Spring | 1R10-105 Rolling Lobe Air Spring |
| 1R10-106 | 20092092 | N | 1R10-106 | 1R10-106 |
| 56620210700000 | 20092094 | Y | PREVST 1R10-107 630159 | PREVST 1R10-107 630159 |
| 56620210800000 | 20092096 | Y | 1R10-108 | 1R10-108 |
| 1R10-108 | 20116563 | N | 1R10-108 Rolling Lobe Air Spring | 1R10-108 Rolling Lobe Air Spring |
| 56620210900000 | 20092098 | Y | 1R10-109 | 1R10-109 |
| 1R10-109 | 20116564 | N | 1R10-109 Rolling Lobe Air Spring | 1R10-109 Rolling Lobe Air Spring |
| 56620211000000 | 20092100 | Y | 1R10-110 | 1R10-110 |
| 56620211100000 | 20092102 | Y | 1R10-111 | 1R10-111 |
| 56620211300000 | 20092105 | Y | 1R10-113 | 1R10-113 |
| 56620211700000 | 20092108 | Y | 1R10-117 | 1R10-117 |
| 56620211800000 | 20099622 | Y | 1R10-118 | 1R10-118 |
| 1R10-118 | 20130400 | N | 1R10-118 Rolling Lobe Air Spring | 1R10-118 Rolling Lobe Air Spring |
