| Luogo di origine: | Guangdong, Cina |
| Marca: | Goodyear |
| Certificazione: | ISO/TS16949:2009 |
| Numero di modello: | 3B12-304 |
| Quantità di ordine minimo: | Negoziabile |
|---|---|
| Prezzo: | Negotiable |
| Imballaggi particolari: | forte contenitore di cartone o come bisogno dei clienti |
| Tempi di consegna: | 2-8 giorni del lavoro |
| Termini di pagamento: | T/T, Western Union, Paypal o altri |
| Capacità di alimentazione: | 1000pcs/week |
| Materiale: | Coperchio d'acciaio, soffietti di gomma | Goodyear: | 3B12-304 |
|---|---|---|---|
| Foro del gas: | 1/4NPTF | Dente della vite: | 3/8-16UNC |
| Distanza concentrare della vite: | 157,5 millimetri | Diametro del coperchio: | 228,6 millimetri |
| Abilità di pressione: | Un PA di 0.2-0.8 m. | Colpo: | 120~457 millimetri |
| Peso netto: | 7,5 chilogrammi | Dimensione del pacchetto: | 33 x 33 x 22 cm |
| Evidenziare: | 503 molle pneumatiche complicate triple,Molle pneumatiche complicate di triplo SC2132,3B12-304 |
||

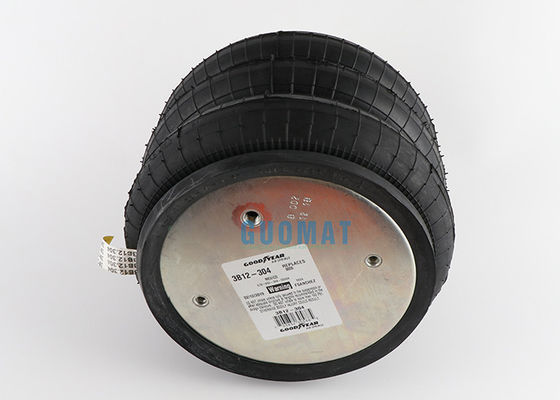

Contitech Air Spring FT 330-29 503 Triple Convoluted Air Springs For LOAD GUARD SC2132
Contitech Air Spring FT 330-29 503 refer to 3B12-304 Cross others OEM
Goodyear 3B12-304
Goodyear 3B12 304
Goodyear 3B12304
Goodyear Flexmember 578-93-3-100
Goodyear Flexmember 578 93 3 100
Goodyear Flexmember 578933100
Contitech FT 330-29 503
Contitech FT 330-29503
Contitech FT330-29 503
Conti tech FT 330-29 503
Conti tech FT 330-29503
Conti tech FT330-29 503
Contitech 64568
Conti tech 64568
Firestone: 8006；
Firestone:W01-358-8006
Firestone:W01 358 8006
Firestone:W013588006
Firestone: 8013；
Firestone:W01-358-8013
Firestone:W01 358 8013
Firestone:W013588013
Triangle spring: 4430
Triangle spring: 4503
Kangdi Technology: 64568
Suspension company: 200620
batco: 10-98006
UCF / Impex: AB-3B12-304
T.W. Distribution: AB8006
Dallas Spring: AS8006
Midland / Haldex: CS312304
Euclid / Meritor Aftermarket: E-FS8006
Euclid / Meritor Aftermarket: FS8006
Kangdi Technology: FT330-29503
Leland: SC2132
Another similar kind 3B12-305, only Air Fitting Size (in) 3/4 is not the same.
Contitech Air Spring FT 330-29 503 refer to 3B12-304 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 157.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 73 mm
❸ Cover Plate
Top Cover Plate Diameter: 228.6 mm
Bottom Cover Plate Diameter: 228.6 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter : 300 mm
The Working Stroke : MIN 120 mm to MAX 457 mm
Maximum Height : 457 mm
Minimum Height :120 mm
Stroke Height : 179mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
The drawing of Goodyear Air Spring 3B12-304:
Goodyear® Goodyear air spring features
Goodyear® Goodyear air springs utilize the compressive elasticity of air, and are essentially different from metal springs such as leaf springs. It has excellent characteristics as a suspension spring. For example, the combined use with a control device keeps the height of the vehicle always constant or arbitrarily changed. It can also improve the vehicle's inclination by individually controlling the left and right air springs.
Modern road transportation places high demands on the comfort and efficiency of automobiles. STEMCO (Stemco) company's mission is to "make our roads safer", knowing user satisfaction, easy and comfortable user experience, is the foundation of the product, and fully consider commercial vehicles in product design The demanding requirements of trucks and customers, such as its super-buffered air springs, use the materials and design of the load to provide industry-leading vibration damping, light weight and long service life. In addition, the unparalleled comfort performance design makes the super-buffer air spring reduce driving fatigue, reduce parts wear and tear, shorten the failure time, and thus improve safety performance.
