| Luogo di origine: | Guangdong, Cina |
| Marca: | Goodyear |
| Certificazione: | ISO/TS16949:2009 |
| Numero di modello: | 3B12-323 |
| Quantità di ordine minimo: | Negoziabile |
|---|---|
| Prezzo: | Negotiable |
| Imballaggi particolari: | forte contenitore di cartone o come bisogno dei clienti |
| Tempi di consegna: | 2-8 giorni del lavoro |
| Termini di pagamento: | T/T, Western Union, Paypal o altri |
| Capacità di alimentazione: | 1000pcs/week |
| materiale: | Coperchio d'acciaio, soffietti di gomma | Goodyear: | 3B12-323 |
|---|---|---|---|
| Foro del gas: | Raccordo aria - 1/4 NPTF | Dente della vite: | 3/8-16UNC |
| Distanza concentrare della vite: | 157,5 millimetri | Diametro del coperchio: | 228,6 millimetri |
| Abilità di pressione: | Un PA di 0.2-0.8 m. | Colpo: | 120~457 millimetri |
| Peso netto: | 7,5 chilogrammi | Dimensione del pacchetto: | 33 x 33 x 22 cm |
| Evidenziare: | 3B12-323 Goodyear Air Spring,W013588043 |
||
3B12-323 Goodyear Air Spring Rubber Bags IRESTONE W013588043 For HENDRICKSON S-14795
Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 7.5 kilograms
Package size: 33 x 33 x 22 cm
Model: 3B12-323
3B12-323 Goodyear Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : Bolt or Stud – 1/2-13 or 1/2-20
Screw Center Distance of Top Cover Plate : 157.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : Air Fitting – 1/4 NPTF
Screw Center Distance Between Gas Hole and Nut : 157.5 mm
❸ Cover Plate
Top Cover Plate Diameter: 228.6 mm
Bottom Cover Plate Diameter: 228.6 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter : 300 mm
The Working Stroke : MIN 120 mm to MAX 457 mm
Maximum Height : 457 mm
Minimum Height :120 mm
Stroke Height : 179mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Number of top plate holes / studs: 2
Top plate diameter: 9
Top plate C to C diameter: 6.2 inch
Base plate hole bolt Qyt: 2
Base plate diameter: 9 inch
Diameter of base plates C to C: 6.2 inch
Base plate part number:
Base plate alignment: parallel
Bumper: no
bracket:
Minimum height: 4.8 inch
Maximum height: 18 inch
3B12-322 Goodyear Cross others OEM
Firestone 8043
Firestone W01-358-8043
Firestone W01 358 8043
Firestone W013588043
Goodyear 3B12-323,
Goodyear 3B12-323,
Goodyear 3B12-323
AUTOMANN
ABSP3B22R-8043
FIRESTONE
8043
W013588043
AUTOMANN
ABSP3B22R-8043
FIRESTONE
8043 W013588043
HENDRICKSON
S-14795

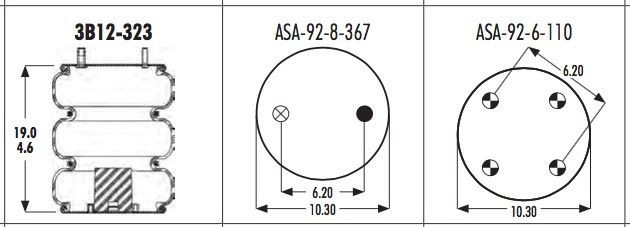

The drawing of GOODYEAR 3B12-323 air spring:
